Our newest feature in Tinkercad Circuits is visual code blocks–powered by Scratch Blocks!

We* designed code blocks to make learning how to program with Arduino as easy as possible. With that in mind, our main goals were to,

  1. Simplify the Arduino programming experience to reduce common syntax errors (such as mistyping the name of a function or forgetting a semi-colon)
  2. Focus on the desired interaction (what you want to sense and control), while scaffolding all the necessary setup required to do so
  3. Bridge the worlds of visual programming and text-based programming to make everything created in Tinkercad Circuits extensible to real, physical hardware using the Arduino IDE

Here, I’ll provide an in-depth explanation of how code blocks work while describing how our design philosophy wove into the creation of this feature.

*We = The Tinkercad Circuits Team (Joshua Brooks, Lead Software Developer, & Myself, Lead UX)

Code Blocks — An In-Depth Example

Tinkercad code blocks are visual blocks you can drag-and-drop to create Arduino programs. Using the Tinkercad Circuits simulator, you can test any code you create directly in the browser, before you build and program your devices with real physical components.

Image for post
Image for post

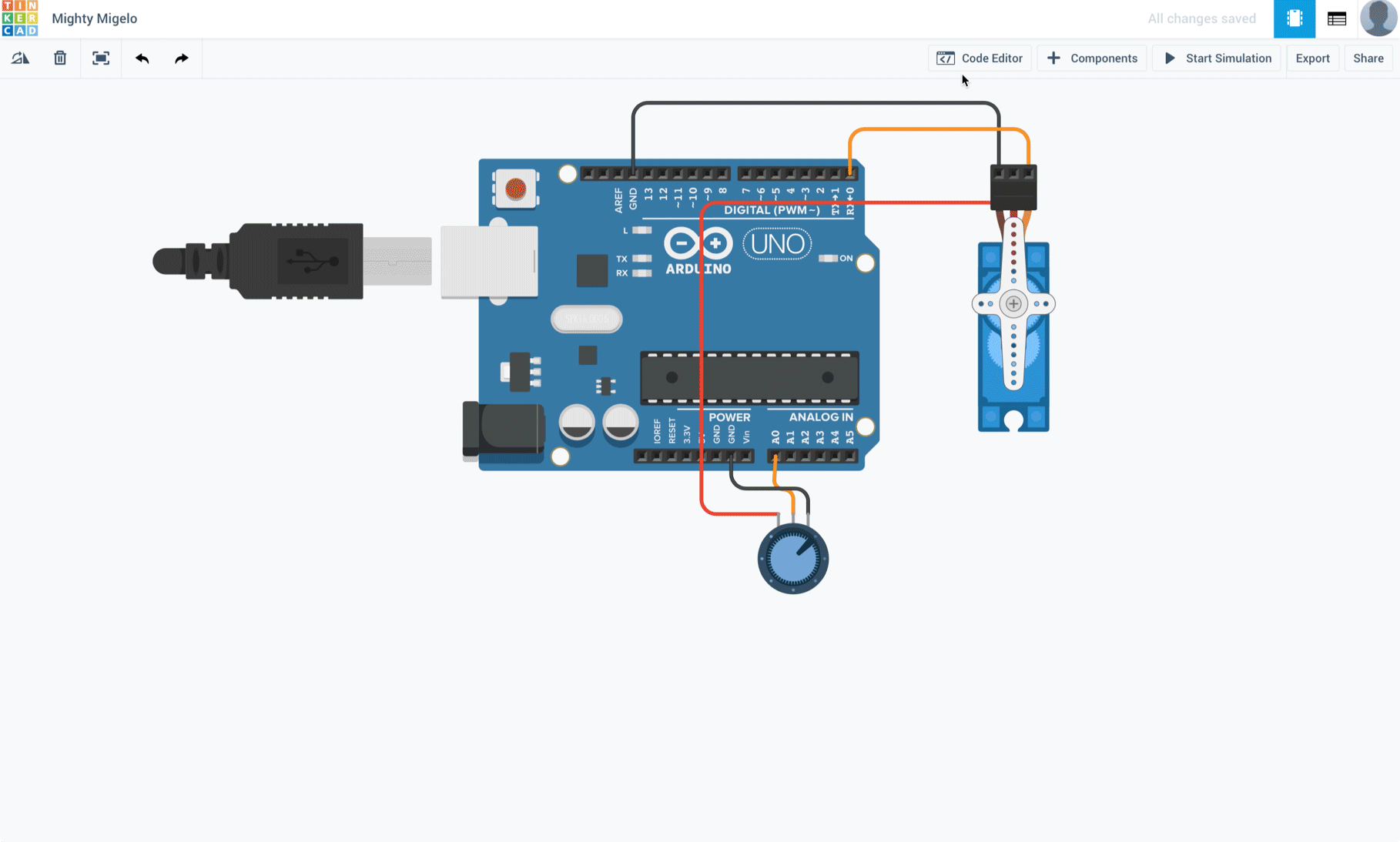

Controlling a servo motor with a potentiometer using Tinkercad Code Blocks

Code blocks are organized into several categories:

  • Output — Blocks for controlling actuators connected to your programmable microcontroller
  • Input — Blocks for reading sensor input
  • Notation — Blocks for adding comments, both to provide an overview of your code (in the title block) and in-line with your code
  • Control — Control structures like adding delays, repeating, and if else statements
  • Math — Blocks for logic and computation
  • Variables — Custom variables that can be edited in your program

These categories make it easier to see all of the basic functions you may want to use in your program. Rather than having to look up a reference for all the functions available for controlling a speaker, for example, the main options are visible in the Output category. We also draw from all the benefits of visual programming, with blocks that only snap together if they “fit” and construct working code.

When you drag out any programmable element into the Tinkercad Circuits editor and click on the Code Editor button, you’ll automatically see code blocks side-by-side with the text editor. Let’s dig into an example below for controlling a servo motor with a potentiometer.

Image for post
Image for post

All Arduino programs have two main functions: a setup() and a loop(). When you drag out any block into the scripting area, the code gets added to the loop() function, and we dynamically create any lines of code necessary within the setup().

For example, when the first block to rotate the servo is added (rotate servo on pin 0 to 0 degrees), several things happen automatically:

  1. The Servo library is added to the code (#include <Servo.h>)
  2. A Servo instance is created (Servo servo_3)
  3. In the setup(), the servo is attached to the pin specified (servo_3.attach(0))
  4. We tell the servo to move to 0 degrees (servo_3.write(0))

This all happened just by adding one block to our code — pretty powerful!

Similarly, when the read analog pin A0 block is added (to control the position of the servo using a potentiometer), check out how we add additional information to the setup() function to specify the pinMode (pinMode(A0, INPUT)).

This functionality is how we addressed Goal #2 of helping users focus on the interactions. We provide the underlying setup necessary to control your program, so all you have to think about is what you want your sensors and actuators to do.

Because we generate the text-based code side-by-side with the code blocks (Goal #3), you can always see how your blocks translate to real Arduino syntax. We believe this has incredible value for learning how to program with Arduino because with every new block you use, you see exactly how it affects the code. In the example above, we effectively turned 3 blocks into ~16 lines of code. For other sensors, there is even greater encapsulation. For example, if you drag out the read ultrasonic distance sensor block, it carries with it ~24 lines of code!

Image for post
Image for post
The read ultrasonic distance sensor block translates to 24 lines of text-based code

The translation between visual blocks and text syntax also affords us some opportunities to tweak the semantics of Arduino functions to make them easier to understand. We wanted to map as closely to sentence-structure as possible, so rather than create a block called, for example, Serial.read(), we created the block read from serial.

Another example of this is with our wait block, which is the equivalent to an Arduino delay. Delay is usually specified in milliseconds, which we felt may be difficult to think in when you’re beginning to program. Instead, we default to a unit of seconds, but in the process, we automatically add comments to the text editor that explain the translation between 1 second and 1000 ms:

Image for post
Image for post
Adding comments to explain simplifications in Code Block syntax

Ultimately, users can download the code as an Arduino sketch from the Circuits editor, open it in the Arduino desktop IDE, and upload it directly to a device when they’re ready.

Try it Out!

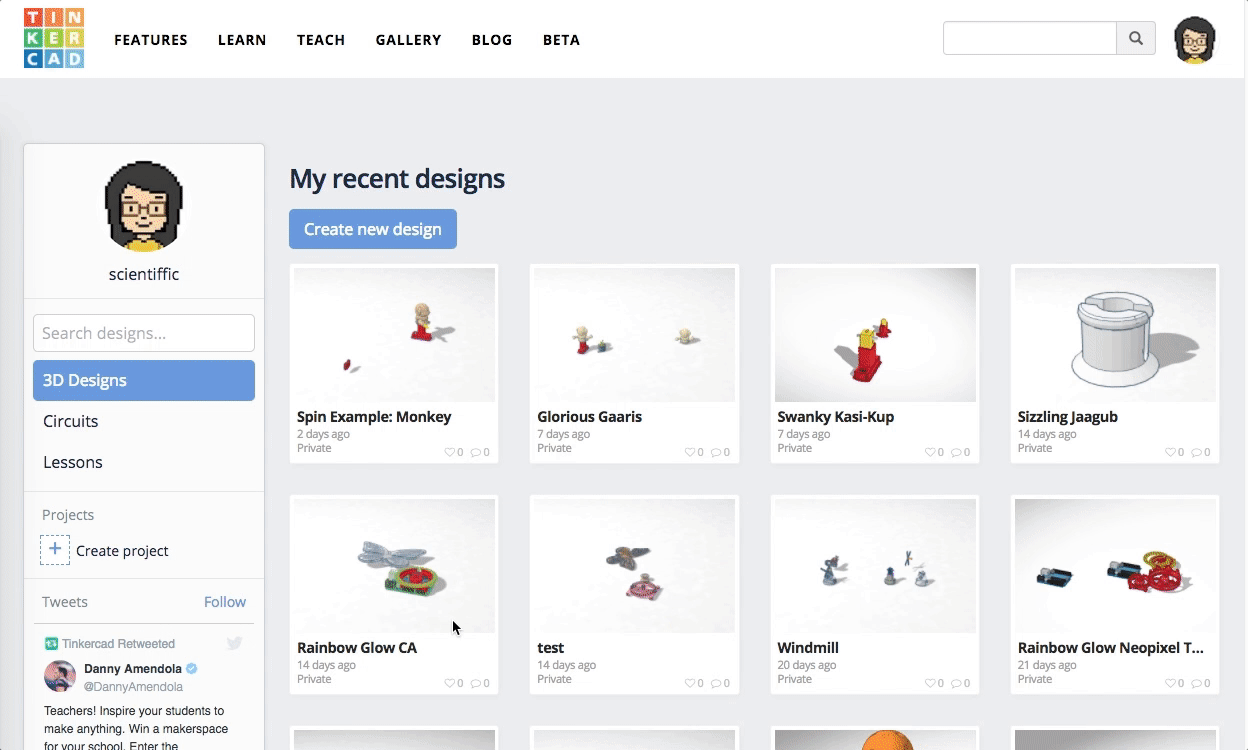

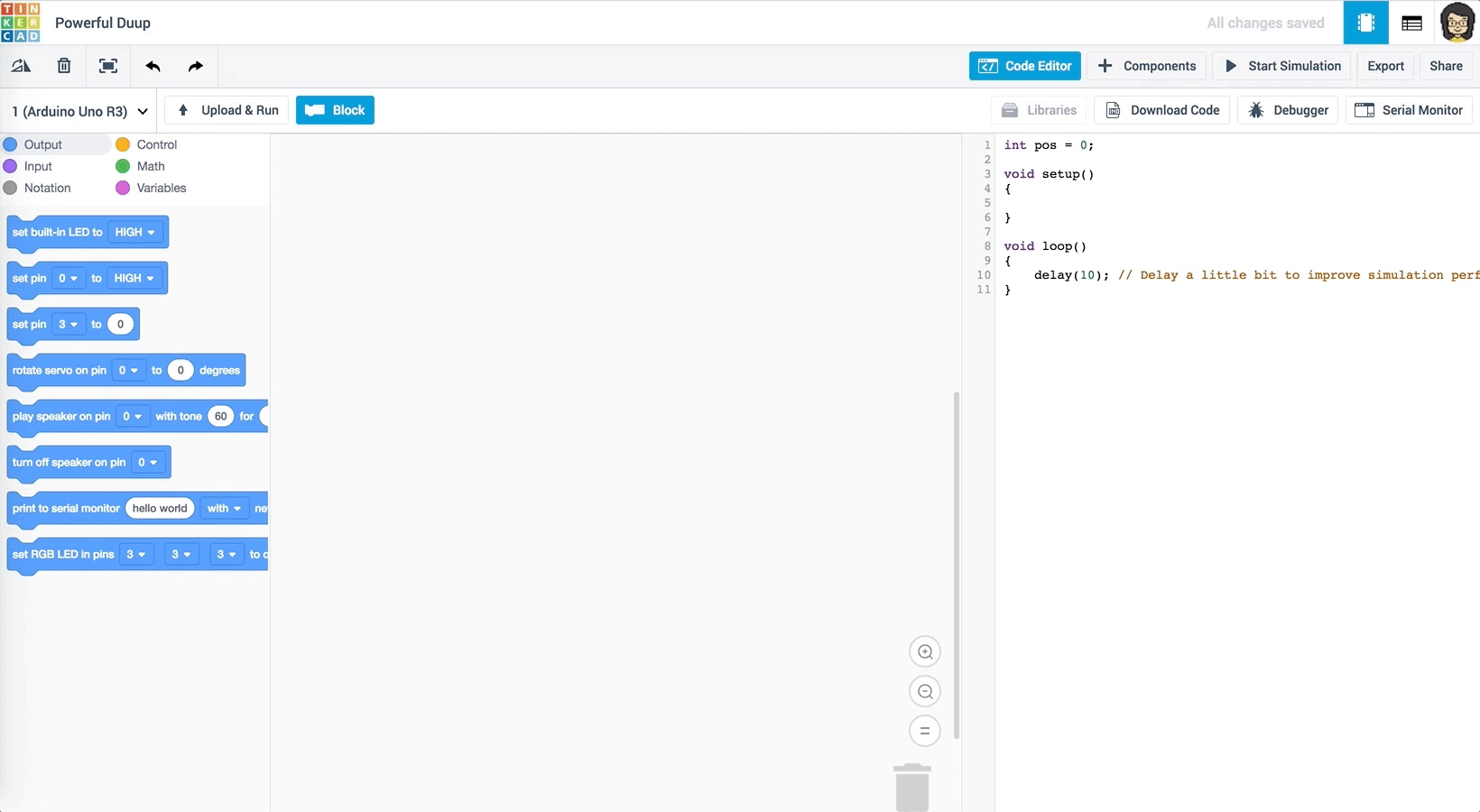

To get started with code blocks, head over to your dashboard (tinkercad.com when you are logged in), click on Circuits, and click the Create Circuit button. When you have the Circuits editor open, drag out an Arduino and click the Code Editor button. There, you’ll automatically see the code blocks and default code to turn the built-in LED on and off — click the Start Simulation button to test it out!

Image for post
Image for post
Getting to Code Blocks in Tinkercad

Many of our starters also include code blocks. To test out these pre-made circuits, click on the Components Button, select the Starters tab, and choose something under the Arduino section to start tinkering (I recommend the Servo starter!).

If you’re looking for some ideas for projects to build, here are some additional examples to get you well on your way to coding with code blocks:

Image for post
Image for post
Control an RGB LED with a temperature sensor
Image for post
Image for post
Create an alarm using an ultrasonic distance sensor and LED

Upcoming Features

Our preview release includes blocks for playing speakers, controlling servos, reading ultrasonic distance sensors, and more. We’ll be adding even more blocks in the near future.

We’re also planning on doing a bit of an editor refresh to optimize screen real-estate, as shown below:

Image for post
Image for post

Any questions or suggestions? Please leave a comment below!


Thanks to the Scratch Team, especially Andrew Sliwinski and Paul Kaplan, for helping us get started with Scratch Blocks, and thanks to the larger Tinkercad team for their feedback and bug bashing!
